RK3588 Mini Embedded PC With 6.0TOPS Optional 4+32G/8+64G/16+128G
- Place of Origin: China
- Brand Name: Neardi
- Certification: CE, ROHS, FCC, ISO9001, ISO 14001, ISO27001
- Model Number: LPB3588
- MOQ: 1 pc
- Price: Negotiable
- Delivery Time: 2-8days
Download: RK3588 Mini Embedded PC With 6.0TOPS Optional 4+32G/8+64G/16+128G
RK3588 Mini Embedded PC With 6.0TOPS Optional 4+32G / 8+64G / 16+128G Parameter
Function | Description |
CPU | RK3588, 8 nm , 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4GHZ |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6TOPS; int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS Encode: H.264/H.265, 8K30FPS |
DDR | LPDDR4, 4GB/8GB/16GB(Optional) |
eMMC | eMMC 5.1, 32GB/64GB/128GB(Optional) |
PMU | RK806, Support variety of power supply |
OS | Android / Buildroot / Debian / Ubuntu |
Hardware Interface | |
Power | DC 9V – 36V |
USB | 3*Type-A USB3.0 HOST 1*Type-c USB3.1 OTG |
Display output | 3*Type-A HDMI 2.0 1* DP1.2 1*Duel channel LVDS |
Audio | 1*φ3.5mm audio out, 1*φ3.5mm microphone 2*Speaker output with 10W@8Ω |
Display input | 1* HDMI-IN |
Net work | 2*10/100/1000Mbps Ethernet |
Extension Interface | 1*mini PCIe for 2G/3G/4G/5G LTE module; 1*mini PCIe for AI cards (optional); M.2 NGFF (M-KEY)PCIE V2.1 x4 with NVMe SSD supported; 1*SATA3.0; |
Connectivity | 2*Uart, 2*CAN BUS, 4*RS232, 1*RS485 |
Input/output | 4*Relays, 4*digital input, 4*analog input |
RK3588 Mini Embedded PC With 6.0TOPS Optional 4+32G/8+64G/16+128G Description
The RK3588 Mini Embedded PC, designed with Rockchip’s RK3588 chip, features a full aluminum body with a fanless design. This innovative structure allows key heat-generating components like the CPU and PMU to efficiently dissipate heat through the aluminum casing. This design ensures excellent performance in harsh environments, making it ideal for various industrial applications.

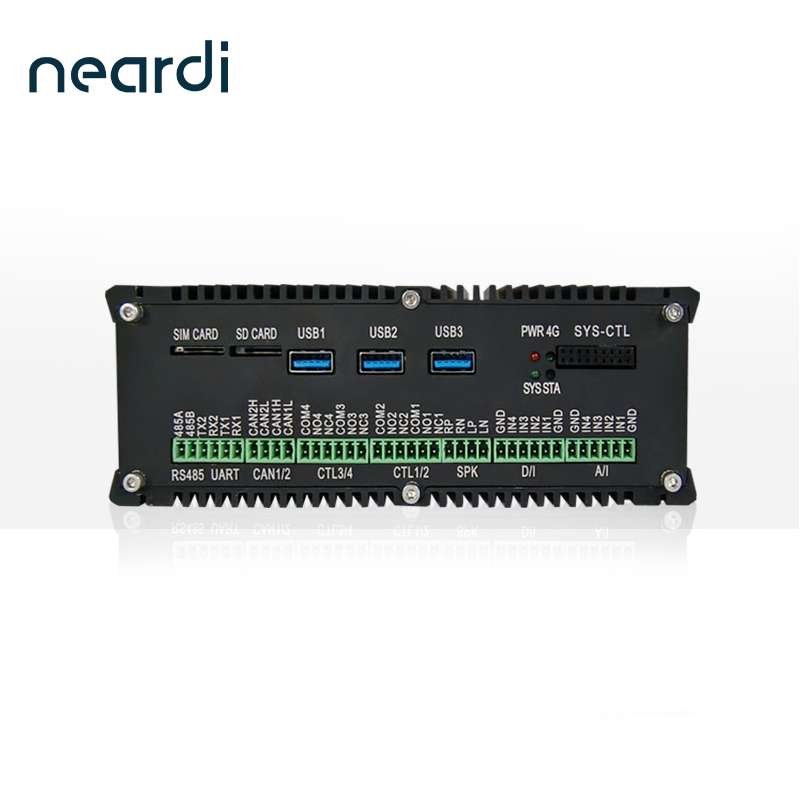

This compact PC offers numerous interfaces, including three Type-A USB 3.0 HOSTs and a full-function Type-C interface, perfect for connecting multiple USB cameras. It also includes two onboard mini-PCIe interfaces for expanding connections to 4G and 5G modules, as well as NPU computing cards based on RK1808. Additionally, the RK3588 supports dual-band Wi-Fi 6, BT5.0, two Gigabit Ethernet ports, two CANBUS, one RS485, and four RS232 communication interfaces.

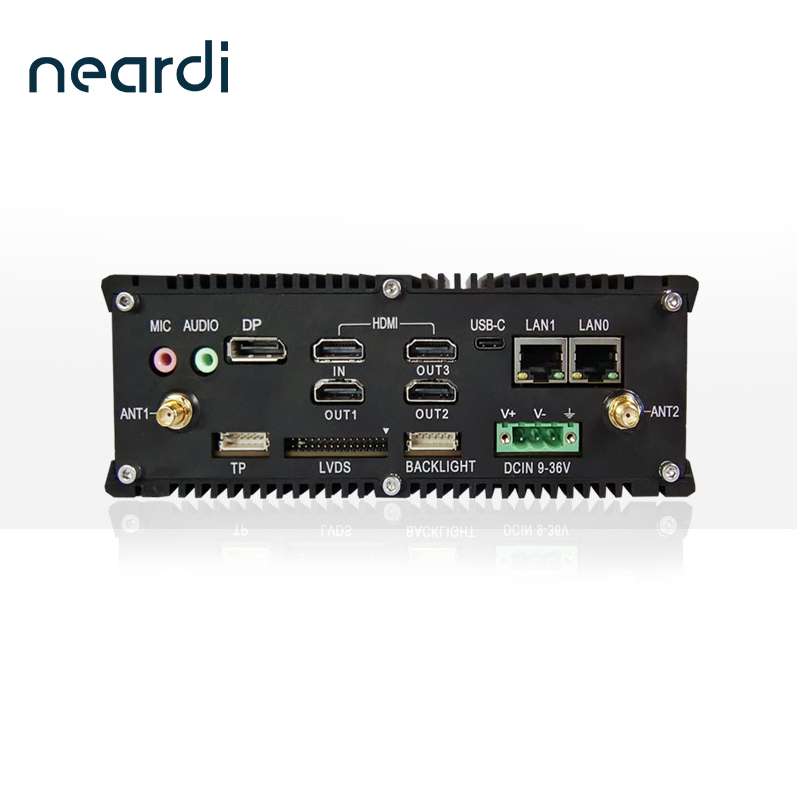

For display, it provides three HDMI outputs, one DP output, a dual-channel LVDS interface with backlight control, and a touch screen interface. It also includes an HDMI input and supports audio input and output, which can connect to a 10W@8Ω stereo soundbox. The built-in M.2 NVMe 2280 SSD interface supports multi-screen independent display.
The RK3588 Mini Embedded PC also supports four relay controls, including normally open and closed ports, with optocoupler isolation for four switch inputs. It supports active input (up to 36V) or passive input and four analog inputs for voltage or current detection, connecting to various sensors externally.
Supporting multiple operating systems like Android, Buildroot, Debian, and Ubuntu, the RK3588 Mini Embedded PC offers high performance, reliability, and scalability. With open-source system code, it provides robust support for secondary development and customization. We are dedicated to offering comprehensive technical services to assist developers and enterprises in efficiently completing research and development projects and quickly bringing products to market.
Multiple USB, Supports multi-screen display, and dual Gigabit Ethernet.2*mipi PCle,2*UART,1*I2C,2*CAN BUS
