Neardi Systems on Modules (SoM)
Systems on Modules (SoM) have become indispensable in the evolving industry. As the cornerstone of numerous applications from industrial automation to advanced AI processing, there is a growing demand for systems on modules with diverse functions and high-performance processing. Neardi is a company with a one-stop enterprise-level open source hardware platform, and as a system-on-module manufacturer, in China, we are at the forefront of this technological wave.
Neardi is not just a trading entity, but also a manufacturer factory focused on producing high-quality systems on modules. At Neardi, we believe in open-source principles. Our open-source module system enables developers and enterprises to innovate freely, ensuring that they have access to the resources and flexibility required for their solutions, and with the support of our multiple technicians, maximize project completion.

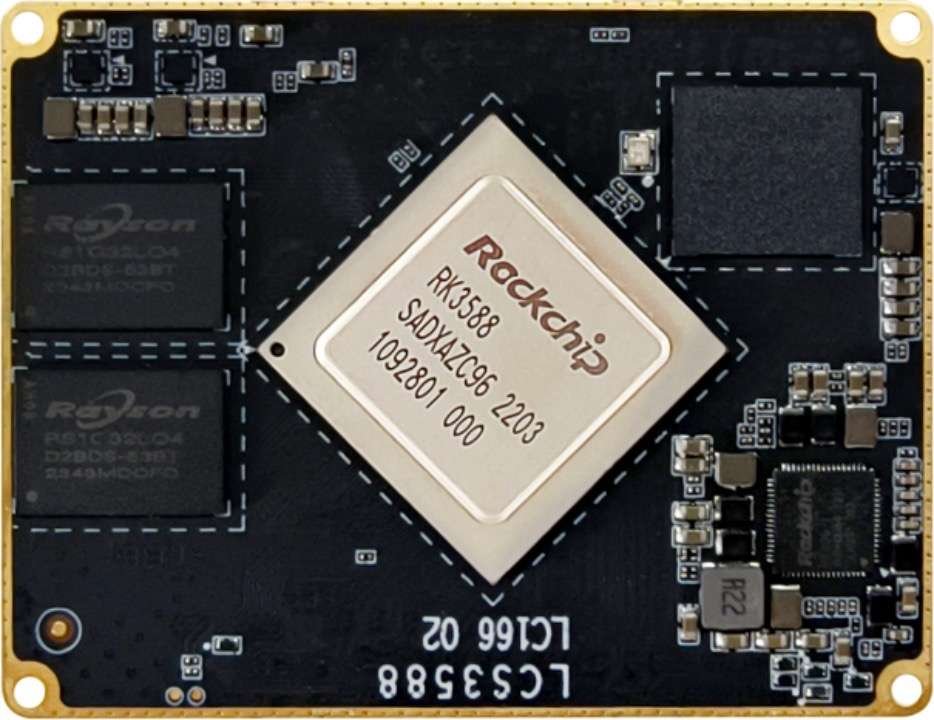

LCS3588/J/M System On Module(SoM/Computer Module)
CPU: RK3588, quad-core A76 + quad-core A55, main frequency up to 2.4GHz
DDR: LPDDR4, 4GB/8GB/16GB (optional)
EMMC: 8GB/16GB/32GB/64GB/128GB (optional)
NPU: 6.0TOPS, INT4/INT8/INT16, TensorFlow/Caffe/MXNet/PyTorch, etc.
OS: Android/Ubuntu/Buildroot/Debian
Connector: B2B (400 Pin 0.4mm Pitch)
Storage combination: 4+32G/8+64G/16+128G
Product size: 65(L)*50(W)*4.5(H)mm
LCB3588/J/M System On Module(SoM/Computer Module)
CPU: RK3588, quad-core A76 + quad-core A55, main frequency up to 2.4GHz
DDR: LPDDR4, 4GB/8GB/16GB (optional)
EMMC: 8GB/16GB/32GB/64GB/128GB (optional)
NPU: 6.0TOPS, INT4/INT8/INT16, TensorFlow/Caffe/MXNet/PyTorch, etc.
OS: Android/Ubuntu/Buildroot/Debian
Connector: B2B (280 Pin 0.8mm Pitch) + FPC (4 x 30 Pin 0.5mm Pitch)
Storage combination: 4+32G/8+64G/16+128G
Product size: 75(L)*70(W)*8.2(H)mm
LCB3588S System On Module(SoM/Computer Module)
CPU: RK3588S, quad-core A76 + quad-core A55, main frequency up to 2.4GHz
DDR: LPDDR4, 4GB/8GB/16GB (optional)
EMMC: 8GB/16GB/32GB/64GB/128GB (optional)
NPU: 6.0TOPS, INT4/INT8/INT16, TensorFlow/Caffe/MXNet/PyTorch, etc.
OS: Android/Ubuntu/Buildroot/Debian
Connector: B2B (280 Pin 0.8mm Pitch) + FPC (2 x 30 Pin 0.5mm Pitch)
Storage combination: 4+32G/8+64G/16+128G
Product size: 75(L)*70(W)*8.2(H)mm
LCB3568/J/M System On Module(SoM/Computer Module)
CPU: RK3568, quad-core A55, up to 2.0GHz
DDR: LPDDR4, 2GB/4GB/8GB (optional)
EMMC: 8GB/16GB/32GB/64GB/128GB (optional)
NPU: 1.0TOPs, INT8/INT16/FP16/BFP16; TensorFlow/Caffe/MXNet/PyTorch, etc.
OS: Android/Ubuntu/Buildroot/Debian
Connector: double-row B2B, 320 Pin
Storage combination: 2+16G/4+16G/4+32G/8+32G
Product size: 60(L)*40(W)*7.8(H)mm
LCB3566 System On Module(SoM/Computer Module)
CPU: RK3566, quad-core A55, up to 1.8GHz
DDR: LPDDR4, 2GB/4GB/8GB (optional)
EMMC: 8GB/16GB/32GB/64GB/128GB (optional)
NPU: 1.0TOPs, INT8/INT16/FP16/BFP16; TensorFlow/Caffe/MXNet/PyTorch, etc.
OS: Android/Ubuntu/Buildroot/Debian
Connector: double-row B2B, 240 Pin
Storage combination: 2+16G/4+16G/8+32G
Product size: 62(L)*40(W)*8.3(H)mm
LCB3399Pro System On Module(SoM/Computer Module)
CPU: RK3399Pro, dual-core A72 + quad-core A53, frequency up to 1.8GHz
DDR: LPDDR3, 3GB/6GB (optional)
EMMC: 8GB/16GB/64GB/128GB (optional)
NPU: 3.0TOPS, INT8/INT16/FP16, supports TensorFlow, Caffe models
OS: Android/Ubuntu/Buildroot/Debian
Connector: B2B, 280 Pin
Storage combination: 3+16G/6+16G/6+64G
Product size: 75(L)*55(W)*7.8(H)mm
LCB3399/K System On Module(SoM/Computer Module)
CPU: RK3399, dual-core A72 + quad-core A53, frequency up to 1.8GHz
DDR: LPDDR3, 2GB/4GB (optional)
EMMC: 8GB/16GB/32GB/64GB/128GB (optional)
GPU: Mali-T860 MP4, OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1
OS: Android/Ubuntu/Buildroot/Debian
Connector: B2B, 240 Pin
Storage combination: 2+16G/4+16G/4+64G
Product size: 62(L)*50(W)*7.8(H)mm
Why Choose Neardi?
Choose Neardi to get the highest quality products, custom designs, and expert support.
Custom Design for Your System on Module
Neardi’s technical team can quickly help you choose a system on module based on your project’s design ideas.
Expert Advice for Your System on Module
With rich experience in hardware-related technologies, Neardi technical team will give you suggestions based on your project needs and reduce your product costs while ensuring product function realization and quality.
Sample First for Your System on Module
After the project starts, we will produce a batch of samples for you first, and after acceptance, we will start mass production.
Technical Support for Your System on Module
No need to worry about the progress of subsequent projects, Neardi’s professional technical after-sales team will solve your problems 24 hours a day.
Something About System on Module
Rockchip series:
Neardi is an official partner of Rockchip. Rockchip series is our flagship product line, known for its versatility and extremely high-cost performance. Among them, the LCB3588/LCB3588J system-level module (note: “J” means industry grade, the working temperature is -40~85℃ ) with RK 3588 chip as the core is very popular. Engineers can develop products based on this module, saving project development time, reducing costs and improving efficiency.
Nvidia series：
Innovation is the core of Neardi. We are developing new products with Nvidia chips to provide more powerful solutions for AI and machine learning applications. Please look forward to our new products.
OS:
Neardi all SoM support Android and Linux systems.
A System on Module (SoM) is a compact, integrated computing unit that includes essential components like a processor, memory, and I/O interfaces on a single board. Neardi’s SoMs streamline design by providing a complete processing solution in a small form factor. Advantages of using a SoM include reduced development time, simplified design, and reliable performance. Neardi’s SoMs offer flexibility and scalability, making them ideal for diverse applications such as industrial automation and IoT devices. By leveraging Neardi’s SoMs, developers can focus on their unique applications while benefiting from a robust and pre-integrated processing solution.
When selecting a System on Module (SoM), consider factors such as power consumption, application requirements, and component compatibility. Neardi’s SoMs are designed for efficiency, offering low power consumption ideal for energy-sensitive applications like IoT devices and industrial automation. Evaluate the SoM’s processing power, memory, and I/O capabilities to ensure it meets your application’s needs. Neardi’s SoMs are versatile, making them suitable for a range of uses, from smart devices to embedded control systems. Selecting the right SoM involves balancing these factors to achieve optimal performance and integration for your specific application.
Yes, System on Modules (SoMs) can be customized for specific applications. Neardi offers customizable SoMs that can be tailored to meet unique requirements, such as adding specific I/O interfaces or optimizing performance for particular tasks. SoMs simplify the development process by providing a pre-integrated solution, reducing the need for extensive hardware design. Neardi’s SoMs are compatible with various operating systems, including Linux and real-time operating systems (RTOS), ensuring flexibility for different application needs. Customizing Neardi’s SoMs helps streamline development while meeting precise application demands efficiently.
