Rockchip RK3399 Android Embedded Board LKD3399 SBC
Keywords: arm board, single board computer, development board, embedded board.
- SOC: RK3399
- DDR: LPDDR4, 2GB/4GB/6GB
(Optional) - eMMC: eMMC 5.1, 16GB/64GB
(Optional) - OS: Android / Ubuntu / Buildroot / Debian
- Size: 140 * 100 * 14.3mm
Description
Parameters
Catalog
Description
Rockchip RK3399 Android Embedded Board LKD3399 SBC for Industrial Applications

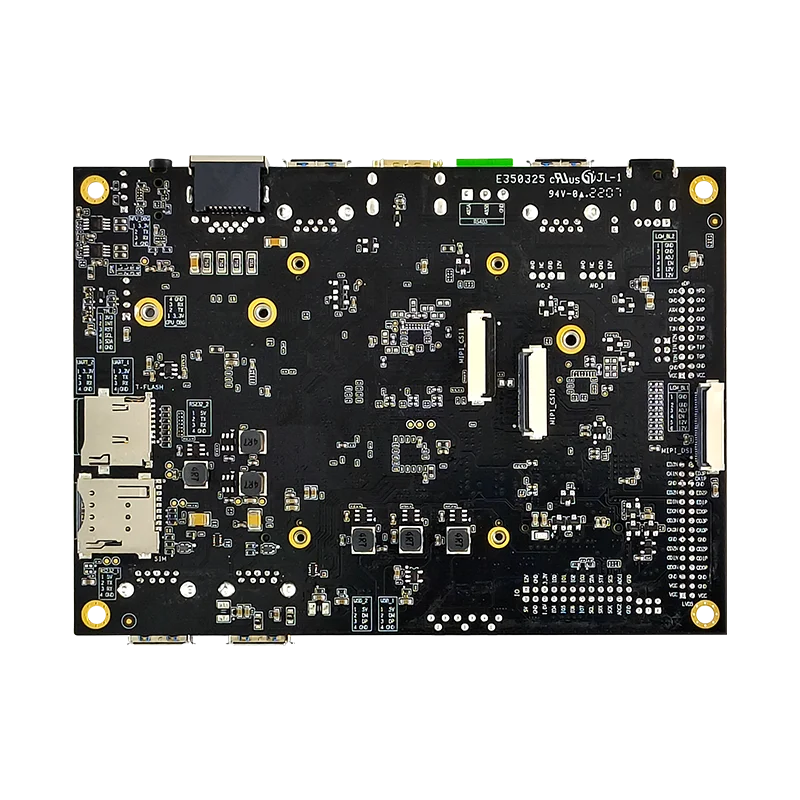

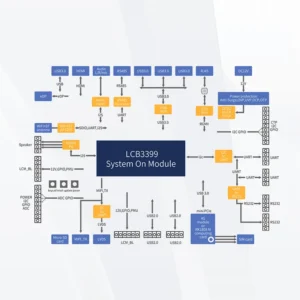

The Rockchip RK3399 Android Embedded Board LKD3399 SBC is a multifunctional industrial-grade single-board computer (SBC) meticulously designed based on the Rockchip RK3399 platform. It consists of our company’s LCB3399 system on module (SoM) and a baseboard, connected via a B2B connector and secured with four M2 screws for enhanced stability and reliability. With rich hardware interfaces, a compact design, and a thin profile, this board is ideal for applications with limited structural space while delivering high-performance computing.
Rockchip RK3399 Android Embedded Board LKD3399 SBC with Versatile Camera Support
The Rockchip RK3399 Android Embedded Board LKD3399 SBC is equipped with four USB 3.0 ports and two USB 2.0 ports, allowing the connection of multiple USB cameras. Additionally, it features two AHD camera input interfaces, enabling simultaneous connection of two AHD cameras for industrial vision applications.
Furthermore, the board includes a mini-PCIe interface that can be used for 4G module expansion or for connecting our mini-PCIe NPU computing card based on the RK1808 AI processor, creating a powerful AI vision computing solution. This configuration supports 3.0 TOPS AI computing power when used with multiple cameras, making it ideal for AI-driven machine vision applications.
Rockchip RK3399 Android Embedded Board LKD3399 SBC with Advanced Connectivity
The Rockchip RK3399 Android Embedded Board LKD3399 SBC supports dual-band Wi-Fi, Bluetooth 5.0, and 1000M Gigabit Ethernet, ensuring high-speed wireless and wired networking capabilities. It also includes multiple communication interfaces such as UART, RS232, and RS485, making it adaptable for industrial control, automation, and IoT applications.
Rockchip RK3399 Android Embedded Board LKD3399 SBC with Multi-Display Support
Designed for flexible display integration, the Rockchip RK3399 Android Embedded Board LKD3399 SBC supports various display output interfaces, including:
•HDMI
•eDP (Embedded DisplayPort)
•MIPI DSI
•Dual-channel LVDS
•Multi-screen display support
This broad display compatibility makes it an excellent choice for digital signage, industrial HMIs, and AI-based visual applications.
Rockchip RK3399 Android Embedded Board LKD3399 SBC with Multi-OS Support
The Rockchip RK3399 Android Embedded Board LKD3399 SBC supports multiple operating systems, including Android, Linux, and Ubuntu, offering high performance, reliability, and scalability. It provides open system source code, allowing users to develop and customize software based on their specific needs.
Our company also offers comprehensive technical support to help developers and enterprises accelerate product development, shorten time to market, and simplify mass production processes.
Parameters
Basic Parameters | |
SOC | RK3399, 28 nm HKMG, Big cluster with dual-coreCortex-A72 + little cluster with quad-core Cortex-A53 |
GPU | Mali- T860 MP4, OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 |
VPU | 4K VP9 and 4K H265 up to 60fps video decoding 1080P@60fps multi-format video decoding (MVC, mpeg-1/2/4, VC-1) 1080P video encoding, with h.264, MVC and VP8 format supported Video anti-cross, de-noising, edge/detail/color optimization supported |
DDR | LPDDR4/LPDDR4X, 3GB/6GB optional |
eMMC | eMMC 5.1, 16GB/64GB |
PMU | RK808 |
OS | Android / Ubuntu / Buildroot / Debian |
Hardware Specifications | |
Power | DC12V – 2A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 4*Type-A USB3.0 HOST, 2*4Pin PH2.0 USB2.0 HOST connector |
Display output | Type-A HDMI 2.0 up to 4K@60fps eDP1.1 20Pin PH2.0 up to 4Kx2K @ 30fps MIPI-DSI up to 1080P@60HZ Duel channel LVDS up to 1080P@60HZ |
Audio | φ3.5mm earphone Jack with L/R audio out and Mic in 1* analog microphone 2*3W/4Ω speaker out with L/R channel 1*HDMI audio out |
Display input | 1*MIPI_CSI interface |
Mini-PCIe | 1*mini PCIe for 2G/3G/4G/5G LTE module or AI cards |
M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 1*10/100/1000 Ethernet |
RTC | 2Pin GH1.25 connector, RTC power on and off supported |
Others | 2*Uart，2*RS232，1*RS485，lots of GPIOs |
Other Parameters | |
Dimensions | Length * Width * Height (mm) 140*100*14 |
Operating Temperature | -10 ~ 70℃ |
Weight | Approximately 118 g (excluding peripherals) |
