Neardi embedded computer include three series, namely Rockchip Series, Nvidia Series, and NXP Series, which are developed with Rockchip, Nvidia, NXP, and other brand chips as the core CPU.

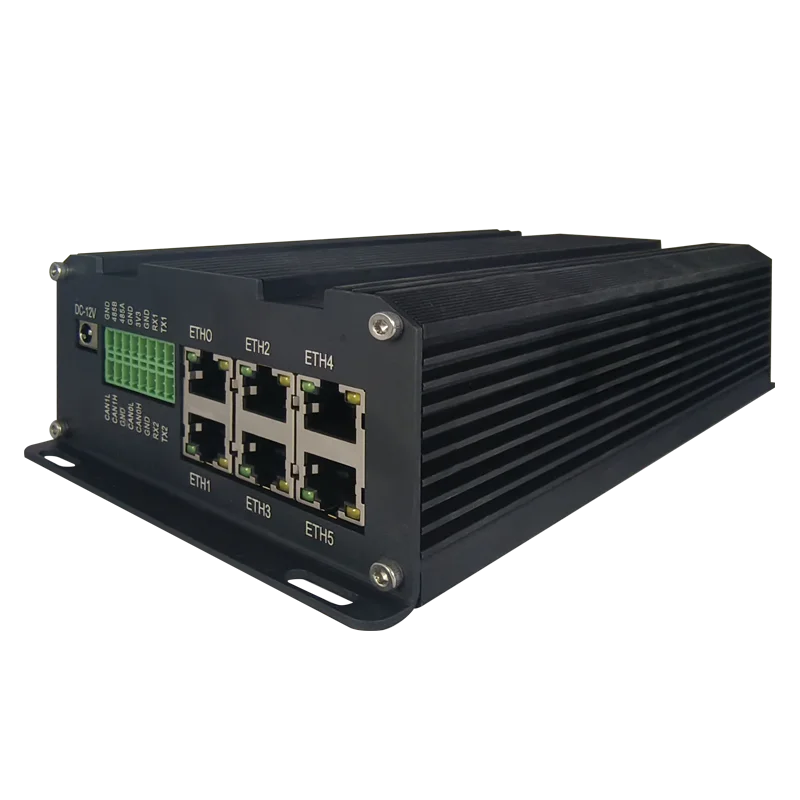

The LPM3588 embedded computer is a product carefully designed based on the Rockchip RK3588 chip. Its body features an all-aluminum, fanless design with an innovative internal structure that efficiently conducts heat from key components like the CPU and PMU to the external aluminum shell, utilizing the entire body for heat dissipation. This design not only allows the LPM3588 to perform well in stringent working environments but also makes it suitable for various industrial applications.

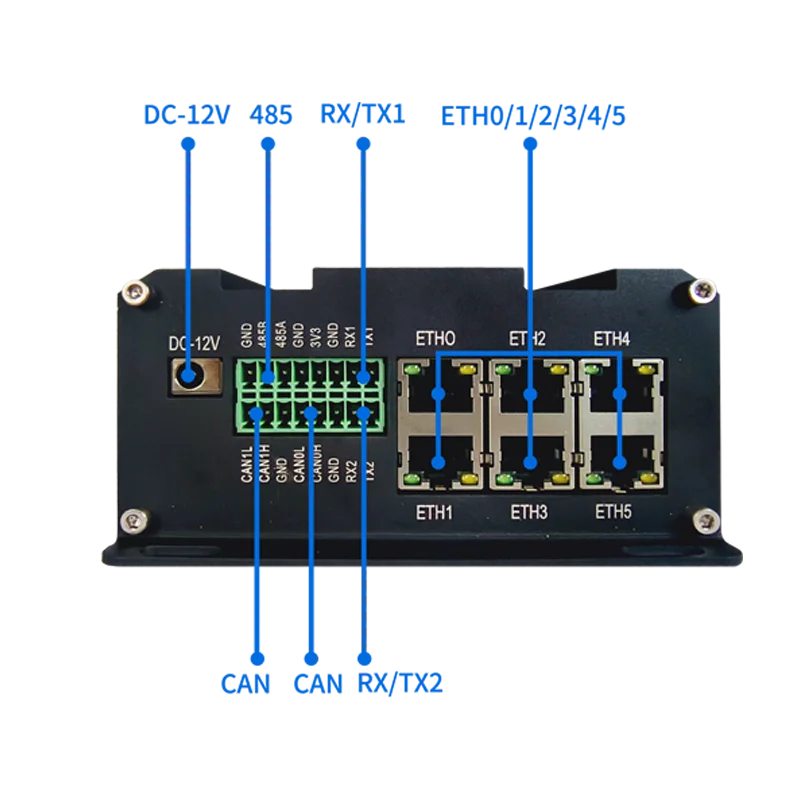

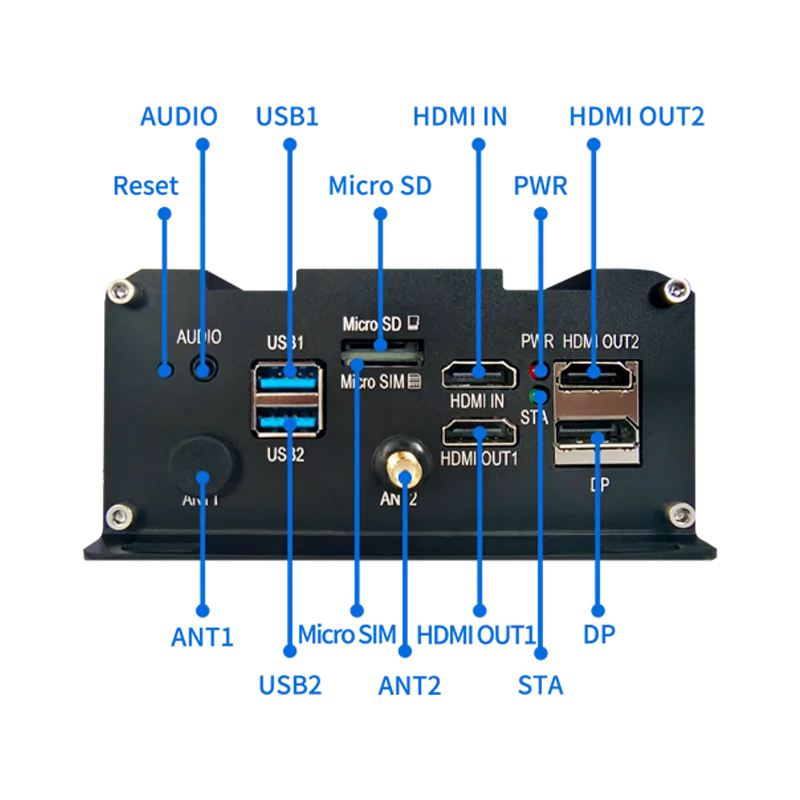

The LPM3588 offers a variety of interfaces, including 2 Type-A USB 3.0 HOST ports, ideal for connecting multiple USB cameras. It has a mini-PCIe interface on board that can be expanded to connect a 4G module or the RK1808 mini-PCIe interface NPU computing card. Additionally, the LPM3588 supports dual-band Wi-Fi 6, BT 5.0, 6-way 1000M Ethernet, CANBUS, RS485, and other communication interfaces. It provides multiple display options, including 2 HDMI outputs, 1 HDMI 2.0 input, and 1 DP interface output, supporting multiple screens with different displays.
The LPM3588 supports various operating systems, such as Android, Buildroot, Debian, and Ubuntu, offering excellent performance, reliability, and scalability.
Hardware Interface | |
Power | DC 9V – 36V |
USB | 2*Type-A USB3.0 HOST |
Display output | 2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps 1* DP1.2 2Lane Output |
Audio | φ3.5mm earphone Jack with Mic in L/R audio out |
Display input | 1* HDMI-IN（4K@60fps), supported HDCP 2.3 |
Net work | 5* 10/100/1000Mbps Ethernet；1* 10/100Mbps Ethernet |
Function | Description |
CPU | RK3588, 8 nm , 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4GHZ |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6TOPS; int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS Encode: H.264/H.265, 8K30FPS |
DDR | LPDDR4, 4GB/8GB/16GB(Optional) |
eMMC | eMMC 5.1, 32GB/64GB/128GB(Optional) |
PMU | RK806, Support variety of power supply |
OS | Android / Buildroot / Debian / Ubuntu |
