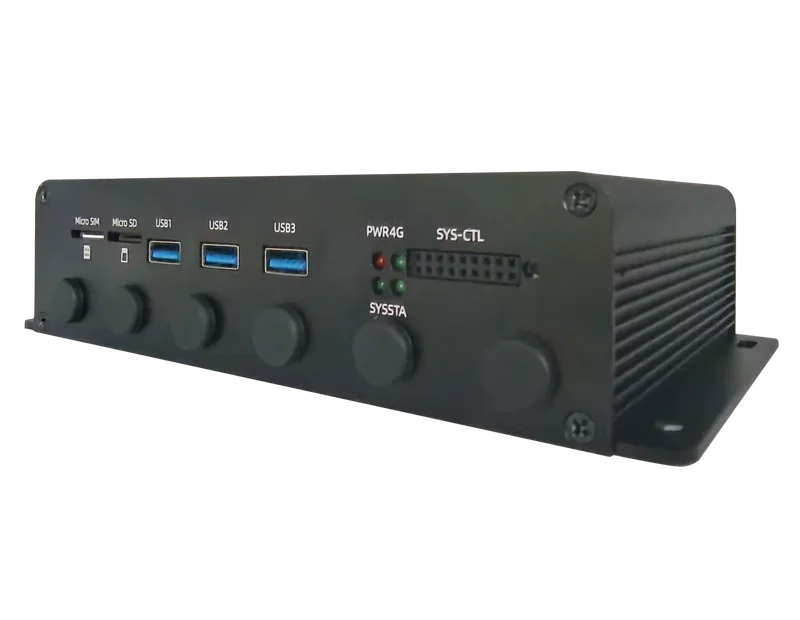

The LPC3588 Embedded PC is powered by the Rockchip RK3588, an 8-core 64-bit processor featuring a combination of Cortex-A76 and Cortex-A55 cores. This architecture balances high performance and low power consumption, making it an ideal choice for demanding industrial and AI applications.
This embedded PC features a fanless aluminum casing, which acts as an innovative heat dissipation system. It’s built to thrive in harsh environments, handling extreme temperatures with ease. Whether you’re deploying it in a factory, a surveillance setup, or an AI-driven platform, the LPC3588 delivers stability and reliability you can count on.
The LPC3588 Embedded PC excels with its versatile video output options. It supports up to three independent displays via its HDMI 2.1, HDMI 1.4, and DP1.2 interfaces. Whether you’re powering digital signage, control panels, or surveillance feeds, you can achieve seamless multi-screen setups with resolutions as high as 8K.
It also features an HDMI input interface, allowing you to integrate video sources directly into your system. This flexibility makes it a top pick for industries like broadcasting, security, and retail.
The LPC3588 Embedded PC is built for AI. Its 6-TOPS NPU (Neural Processing Unit) with support for frameworks like TensorFlow and PyTorch allows you to handle machine learning and inference tasks with remarkable speed and efficiency.
Additionally, the Mali-G610 MC4 GPU accelerates complex graphics workloads and ensures smooth performance in multimedia applications. Whether you’re processing high-resolution images or running AI-based analytics, the LPC3588 is more than capable of meeting your needs.
One of the standout features of the LPC3588 Embedded PC is its extensive connectivity. With three USB 3.0 ports, one USB-C port, dual 1000M Ethernet ports, WiFi 6, and Bluetooth 5.0, this embedded PC is equipped to handle modern IoT applications.
It offers two mini-PCIe slots, enabling you to expand its capabilities with 4G modules, additional storage, or even NPU cards based on the RK1808 chip. This scalability makes it a future-proof investment for industries like automation, robotics, and edge computing.
Hardware Interface | |
Power | DC12V – 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 3*Type-A USB3.0 HOST + 1* Type-C USB3.1 OTG |
Display output | 2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps 1*Type-A HDMI 1.4 up to 1080P@60fps 1* DP1.2 2Lane Output |
Audio | φ3.5mm earphone Jack with L/R audio out; φ3.5mm micphone Jack with Mic in |
Display input | 1* HDMI-IN（4K@60fps), Support HDCP 2.3 |
Net work | 5* 10/100/1000Mbps Ethernet; 1* 10/100Mbps Ethernet |
Function | Description |
CPU | RK3588, 8 nm , 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4GHZ |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6TOPS; int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS Encode: H.264/H.265, 8K30FPS |
DDR | LPDDR4, 4GB/8GB/16GB(Optional) |
eMMC | eMMC 5.1, 32GB/64GB/128GB(Optional) |
PMU | RK806, Support variety of power supply |
OS | Android / Buildroot / Debian / Ubuntu |
