Neardi single board computer include three series, namely Rockchip Series, Nvidia Series, and NXP Series, which are developed with Rockchip, Nvidia, NXP, and other brand chips as the core CPU.

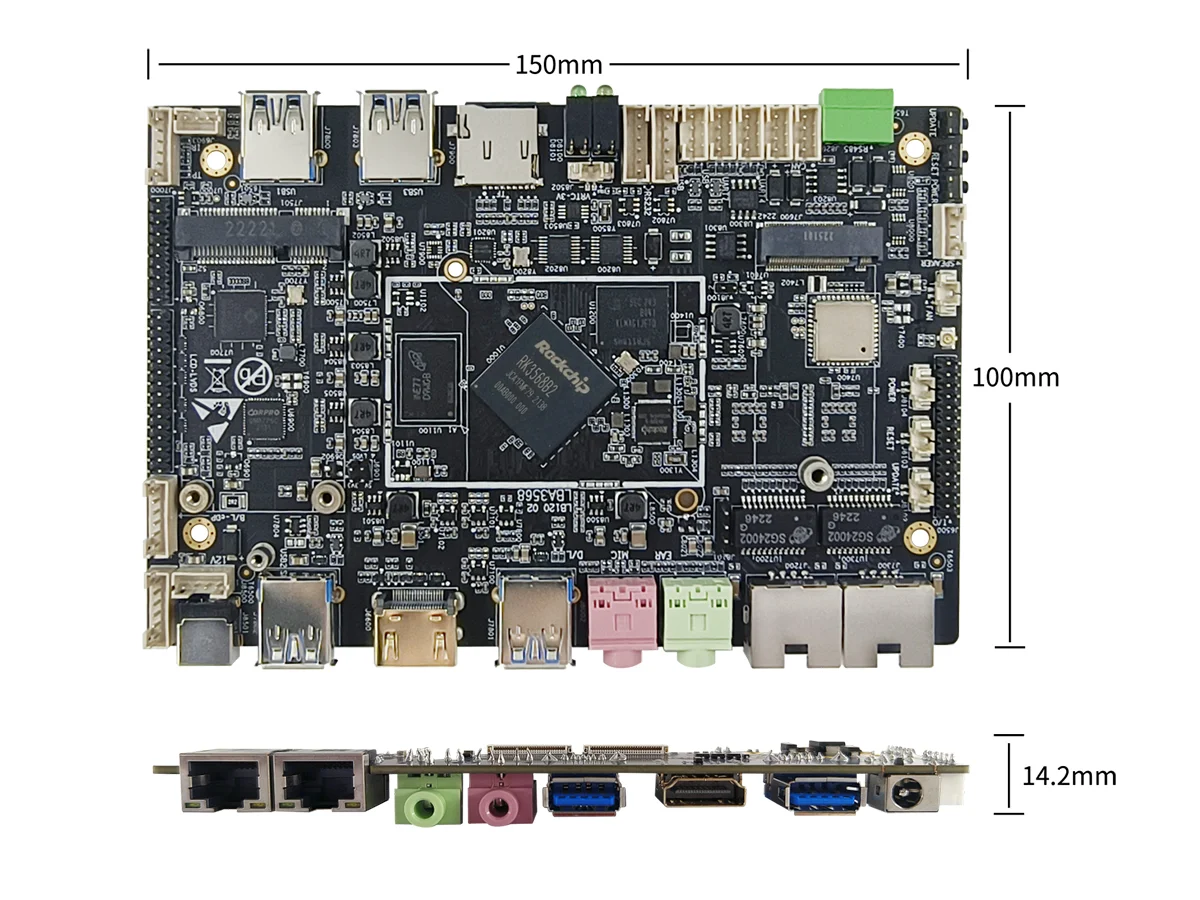

The LBA3568 is a multifunctional industrial single-board computer, carefully designed based on the Rockchip RK3568 chip platform. The board offers various functions, rich interfaces, and a compact, thin, and flat design, making it suitable for products with limited structural space.
The LBA3568 features 1 USB 3.0 HOST, 1 USB 3.0 OTG, and 2 USB 2.0 HOST interfaces, which can connect to multiple USB cameras. It also includes 3 mini-PCIe interfaces, which can connect to a 4G module or our mini-PCIe interface NPU computing card based on the RK1808. This configuration can be combined with multiple cameras to create an artificial intelligence visual computing board supporting 3.0 TOPS of computing power. Additionally, the LBA3568 supports common communication module interfaces such as dual-band Wi-Fi, BT 5.0, 1000M Ethernet, UART, I2C, CANBUS, and more. It supports 2 HDMI outputs, 1 HDMI input, dual-channel LVDS, and other display interfaces, as well as multiple screens with different displays.
The LBA3568 supports Android, Linux, and Ubuntu systems, offering high performance, high reliability, and high scalability. The system’s source code is open to users, allowing for secondary development and customization. Our company provides comprehensive technical support for developers and corporate users, enabling efficient research and development, and significantly shortening the product development and mass production cycle.
Function | Description |
CPU | RK3588, quad-core Cortex-A76@2.4GHz + quad-core Cortex-A55@1.8GHz |
GPU | • Mail-G610 MP4 • OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
NPU | 6 TOPS, supports INT4/INT8/INT16/FP16 mixed operating |
VPU | Decode: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Encode: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 |
DDR | 4GB/8GB/16GB/32GB 64bit LPDDR4/LPDDR4x/LPDDR5 |
eMMC | eMMC 5.1， 8GB/16GB/32GB/64GB/128GB(Optional) |
Network | 2×10/100/1000Mbps Ethernet Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac/ax, up to 433Mbps. BT 5.0 2G/3G/4G/5G(Optional) |
RAM | MicroSD(TF) with SDIO3.0 |
System | Android / Ubuntu / Buildroot |
Size | 160*115*28.25 mm |
Hardware Interface | |
Power input | 12V/2A |
USB | 4 × USB3.0 1 × USB2.0 |
Display Interface | 2×HDMI 2.1 @60fps or 4K@120fps 1×HDMI 1.4 1080P@60fps 1× LVDS 1080P@60HZ 1 × DP1.4（8K@30fps, USB 3.0） 1× DP1.2 2 Lane output 1 × HDMI-IN（4K@60fps), HDCP 2.3 Available. |
Audio Interface | 1 × 3.5mm headphone audio output 1 × 3.5mm microphone audio input 1 × HDMI audio output 2 × Speaker output (2.7W/4Ω) |
Camera Interface | 2× MIPI CSI (4 Lane) or 2×MIPI CSI (2 Lane) + 1* MIPI CSI (4 Lane) |
PCIe | mini PCIe, 2G/3G/4G available; RK1808 AI available. |
M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD |
SD card | SDIO 3.0 |
Others | 5x ADC, 1x I2C(CTP available), 2*SATA，3x Uart, 1xI2C |
