Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD
- Place of Origin: China
- Brand Name: Neardi
- Certification: CE, ROHS, FCC, ISO9001, ISO 14001, ISO27001
- Model Number: LKD3399
- MOQ: 1 pc
- Price: Negotiable
- Delivery Time: 2-8days
Download: Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD
Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD Parameter
Basic Parameters | |
SOC | RK3399, 28 nm HKMG, Big cluster with dual-coreCortex-A72 + little cluster with quad-core Cortex-A53 |
GPU | Mali- T860 MP4, OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 |
VPU | 4K VP9 and 4K H265 up to 60fps video decoding 1080P@60fps multi-format video decoding (MVC, mpeg-1/2/4, VC-1) 1080P video encoding, with h.264, MVC and VP8 format supported Video anti-cross, de-noising, edge/detail/color optimization supported |
DDR | LPDDR4/LPDDR4X, 3GB/6GB optional |
eMMC | eMMC 5.1, 16GB/64GB |
PMU | RK808 |
OS | Android / Ubuntu / Buildroot / Debian |
Hardware Specifications | |
Power | DC12V – 2A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 4*Type-A USB3.0 HOST, 2*4Pin PH2.0 USB2.0 HOST connector |
Display output | Type-A HDMI 2.0 up to 4K@60fps eDP1.1 20Pin PH2.0 up to 4Kx2K @ 30fps MIPI-DSI up to 1080P@60HZ Duel channel LVDS up to 1080P@60HZ |
Audio | φ3.5mm earphone Jack with L/R audio out and Mic in 1* analog microphone 2*3W/4Ω speaker out with L/R channel 1*HDMI audio out |
Display input | 1*MIPI_CSI interface |
Mini-PCIe | 1*mini PCIe for 2G/3G/4G/5G LTE module or AI cards |
M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 1*10/100/1000 Ethernet |
RTC | 2Pin GH1.25 connector, RTC power on and off supported |
Others | 2*Uart，2*RS232，1*RS485，lots of GPIOs |
Other Parameters | |
Dimensions | Length * Width * Height (mm) 140*100*14 |
Operating Temperature | -10 ~ 70℃ |
Weight | Approximately 118 g (excluding peripherals) |
Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD
Description

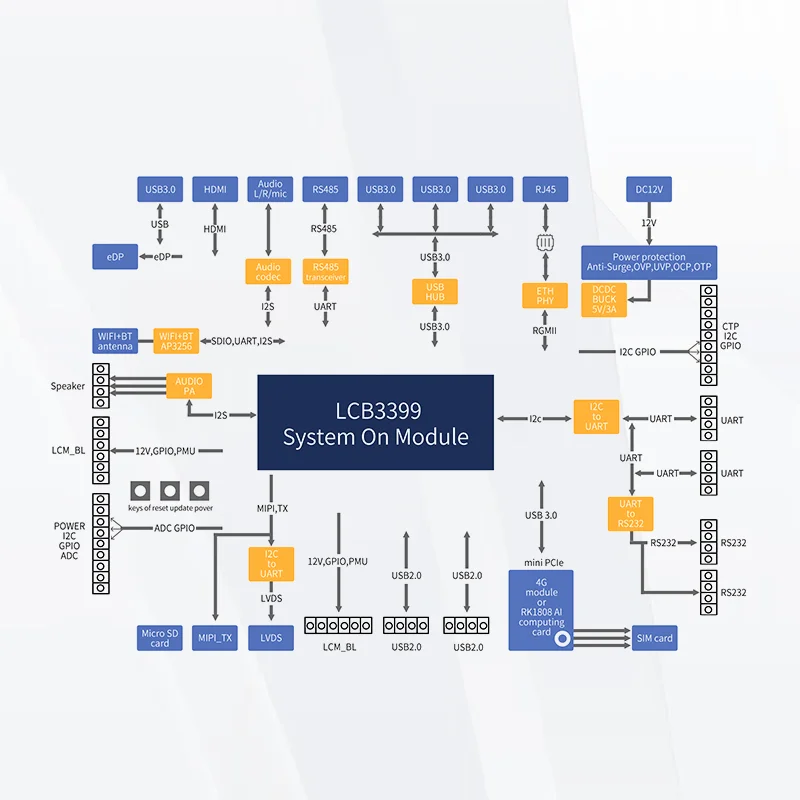

The Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD is a multifunctional industrial application board meticulously designed around the Rockchip RK3399 chip platform, featuring Neardi’s LCB3399 SoM module and baseboard. The LCB3399 SoM module connects to the baseboard via a B2B connector and is securely fastened with four M2 screws, ensuring stability and reliability.
Compact and versatile, the Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD is rich in interfaces, making it ideal for products with limited structural space. The Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD includes four USB 3.0 and two USB 2.0 ports, enabling the connection of multiple USB cameras. It also has two AHD camera input interfaces for simultaneously connecting two AHD cameras. The mini-PCIe interface supports a 4G module or our company’s mini-PCIe NPU computing card based on the RK1808, creating an AI vision computing card with 3.0 TOPS computing power when paired with multiple cameras.
Additionally, the Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD supports dual-band Wi-Fi, Bluetooth 5.0, Gigabit Ethernet, UART, RS232, RS485, and other common communication module interfaces. It also offers various display interfaces, including HDMI, eDP, MIPI, dual-channel LVDS, and multi-screen display capabilities.
The Rockchip RK3399 Development Board With USB3.0 RS232 RS485 AHD supports Android, Linux, and Ubuntu operating systems, delivering high performance, reliability, and scalability. With access to open-source system code, users can develop and customize their projects based on this product. Our company provides comprehensive technical support to developers and enterprise users, helping them efficiently complete R&D tasks and significantly shorten the product development and mass production cycle.
