RK3588 Embedded Fanless Computer With 4A76 + 4A55 CPU 6.0TOPS NPU
- Place of Origin: China
- Brand Name: Neardi
- Certification: CE, ROHS, FCC, ISO9001, ISO 14001, ISO27001
- Model Number: LPC3588
- MOQ: 1 pc
- Price: Negotiable
- Delivery Time: 2-8days
Download: RK3588 Embedded Fanless Computer With 4A76 + 4A55 CPU 6.0TOPS
RK3588 Embedded Fanless Computer With 4A76 + 4A55 CPU 6.0TOPS NPU
Function | Description |
CPU | RK3588, 8 nm , 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4GHZ |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6TOPS; int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS Encode: H.264/H.265, 8K30FPS |
DDR | LPDDR4, 4GB/8GB/16GB(Optional) |
eMMC | eMMC 5.1, 32GB/64GB/128GB(Optional) |
PMU | RK806, Support variety of power supply |
OS | Android / Buildroot / Debian / Ubuntu |
Hardware Interface | |
Power | DC12V – 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 3*Type-A USB3.0 HOST + 1* Type-C USB3.1 OTG |
Display output | 2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps 1*Type-A HDMI 1.4 up to 1080P@60fps 1* DP1.2 2Lane Output |
Audio | φ3.5mm earphone Jack with L/R audio out; φ3.5mm microphone Jack with Mic in |
Display input | 1* HDMI-IN（4K@60fps), Support HDCP 2.3 |
Net work | 5* 10/100/1000Mbps Ethernet; 1* 10/100Mbps Ethernet |
RK3588 Embedded Fanless Computer With 4A76 + 4A55 CPU 6.0TOPS NPU Description
Innovative Design of the LPC3588 Embedded Fanless Computer
The LPC3588 Embedded Fanless Computer is meticulously designed around the Rockchip RK3588 chip. It features a full aluminum body with a fanless design and an innovative internal structure that efficiently conducts heat from key components like the CPU and PMU to the external aluminum casing. This design ensures that the entire body acts as a heat-dissipation material. The result is excellent performance in harsh working environments, making the LPC3588 suitable for various industrial applications.
Diverse Connectivity Options in the LPC3588 Embedded Fanless Computer

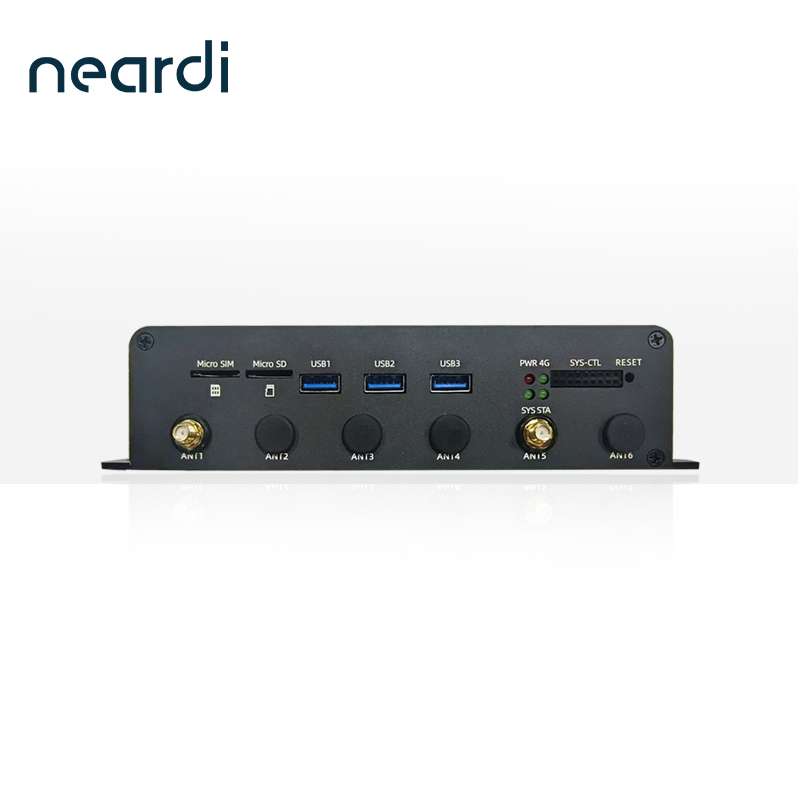

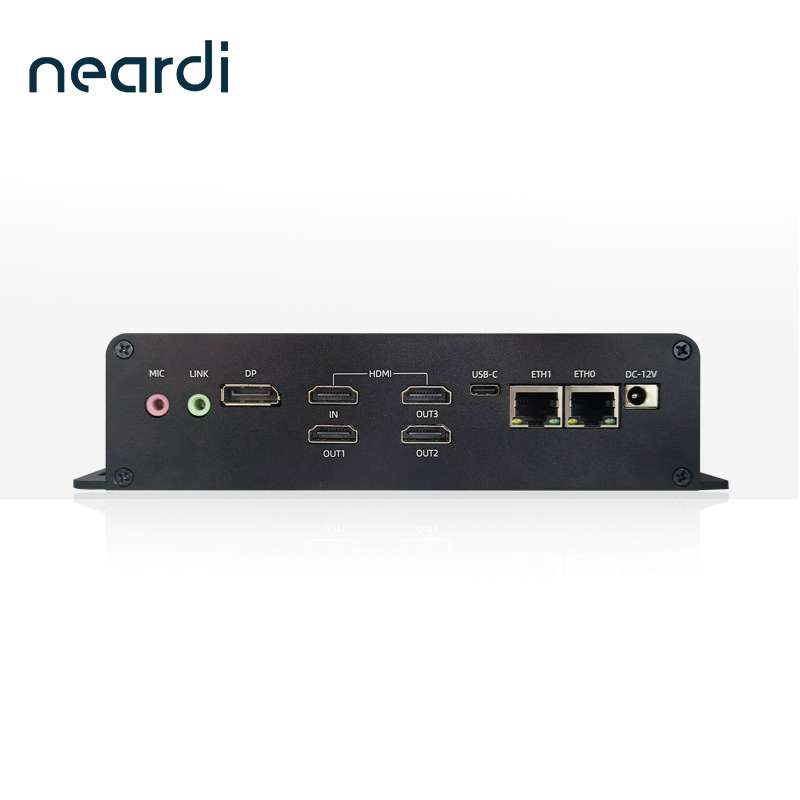

The LPC3588 offers a variety of interfaces, making it a versatile choice for numerous applications. It includes 3 Type-A USB 3.0 HOSTs and 1 Type-C USB 3.1 OTG, perfect for connecting multiple USB cameras. Additionally, the device has 2 onboard mini-PCIe interfaces, which can be expanded to connect 4G modules and NPU computing cards with mini-PCIe interfaces based on RK1808. The LPC3588 supports dual-band Wi-Fi 6, BT5.0, dual 1000M Ethernet, and various other communication module interfaces. For display needs, it provides 3 HDMI outputs, 1 HDMI 2.0 interface input, and 1 DP interface output, enabling multi-screen independent displays.
Exceptional Performance and Scalability of the LPC3588 Embedded Fanless Computer
The LPC3588 Embedded Fanless Computer supports multiple operating systems, including Android, Buildroot, Debian, and Ubuntu. This compatibility ensures excellent performance, high reliability, and scalability. The system source code is open to users, offering robust support for secondary development and customization. Neardi is committed to providing comprehensive technical services to developers and enterprise users, assisting them in efficiently completing research and development work. This support helps customers quickly bring products to market, making the LPC3588 an ideal solution for a wide range of industrial applications.
Multiple USB, Supports multi-screen display, and dual Gigabit Ethernet.2*mipi PCle,2*UART,1*I2C,2*CAN BUS
