Neardi stands out in the embedded systems market by offering two robust models of the RK3568 Android Embedded ARM Board: the LKD3568/3568J and the LBA3568. Our boards provide exceptional performance with a quad-core A55 CPU, powerful GPU capabilities, and a variety of interfaces for seamless integration. With support for multiple operating systems and extensive connectivity options, Neardi’s RK3568 boards are perfect for developers looking for reliable and flexible solutions.
RK3568 Android Embedded ARM Board
- Quad-Core A55 CPU: Up to 2.0 GHz for efficient processing.
- ARM G52 GPU: Supports OpenGL, Vulkan, and more for rich graphics performance.
- NPU: 1.0 TOPS capability for AI applications using TensorFlow, Caffe, and more.
- Multiple Connectivity Options: Includes 2x 1000M Ethernet, WiFi 6, Bluetooth 5.0, and various USB interfaces.
Key Features of RK3568 Android Embedded ARM Board

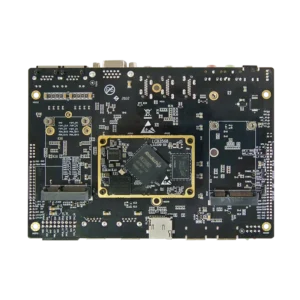

| Feature | LKD3568/3568J |
|---|
| CPU | RK3568, Quad-Core A55, up to 2.0 GHz |
| GPU | ARM G52 2EE, supports OpenGL ES, OpenCL, Vulkan |
| NPU | 1.0 TOPS, supports INT4/INT8/INT16 for AI |
| Connectivity | 2x 1000M Ethernet, WiFi 6, BT 5.0, 4G/5G |
| Video Outputs | 2x HDMI out, 1x HDMI in, 1x LVDS |
| USB Ports | 2x USB 3.0, 2x CSI |
| Expansion Options | 3x mini-PCIe, supports 9.0T compute card expansion |
| Storage Combinations | 2+16G / 4+16G / 4+32G / 8+32G |
| Dimensions | 160(L) x 115(W) x 26.2(H) mm |
| Key Features | Multi-screen display capability |

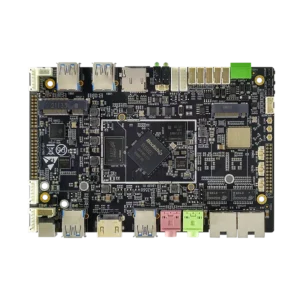

| Feature | LBA3568 |
|---|
| CPU | RK3568, Quad-Core A55, up to 2.0 GHz |
| GPU | ARM G52 2EE, supports OpenGL ES, OpenCL, Vulkan |
| NPU | 1.0 TOPS, supports INT4/INT8/INT16 for AI |
| Connectivity | 2x 1000M Ethernet, WiFi 6, BT 5.0, 4G/5G |
| Video Outputs | 1x HDMI out, 1x DSI, 1x eDP, 1x LVDS |
| USB Ports | 4x USB 3.0, 2x USB 2.0, 2x CSI |
| Expansion Options | Supports multiple camera inputs |
| Storage Combinations | 2+16G / 4+16G / 4+32G / 8+32G |
| Dimensions | 150(L) x 100(W) x 12(H) mm |
| Key Features | Multi-camera input, versatile data communication |
FAQ
The RK3568 board is used for various applications, including smart home devices, industrial automation, and media playback, leveraging its powerful processing capabilities and multiple connectivity options.
