octa core single board computer
Octa-Core Single Board Computers (SBCs) are designed to deliver superior processing power and efficiency, making them ideal for a variety of applications, from industrial automation to multimedia processing. With eight processing cores, these SBCs enable high-performance computing that can handle multiple tasks simultaneously, making them perfect for demanding environments.
How Does an Octa-Core SBC Compare to Dual-Core or Quad-Core Options?
Octa-Core SBCs outperform dual-core and quad-core processors by providing significantly more processing power. While dual-core and quad-core options are suitable for basic tasks, Octa-Core SBCs excel in multitasking and complex applications. The added cores allow for better resource allocation, improved speed, and reduced lag, making them ideal for applications requiring high performance, such as AI processing, video streaming, and real-time data analysis.
High Performance
With up to eight cores, Octa-Core SBCs deliver faster processing speeds and improved performance for complex applications.
Versatile Connectivity
Equipped with multiple USB ports, HDMI outputs, and network interfaces, these boards support a wide range of peripherals and applications.
Compact Design
Ideal for space-constrained applications, Octa-Core SBCs provide powerful performance without sacrificing size.
Wide Operating Temperature Range
Suitable for various environments, with operational temperatures from -20°C to 70°C.
- SOC: RK3588S
- DDR: LPDDR4, options of 4GB/8GB/16GB
- eMMC: eMMC 5.1, options of 32GB/64GB/128GB
- OS: Android / Ubuntu / Buildroot / Debian
- Size: 160 x 115 x 28.25 mm
- Working Temperature: -20 ~ 70°C
The LKD3588S is a multifunctional evaluation board built on the Rockchip RK3588 platform. It features:
- Extensive Connectivity: Includes 3 Type-A USB 3.0 HOST ports, 1 Type-C USB 3.1 OTG port, and 2 mini-PCIe interfaces for flexibility.
- Multiple Display Options: Supports 3 HDMI outputs, dual-channel LVDS, and multiple MIPI-CSI camera inputs for rich visual applications.
- Robust Communication: Equipped with dual-band WiFi 6, BT 5.0, and dual-channel Gigabit Ethernet, ensuring seamless connectivity.
- SOC: RK3588S
- DDR: LPDDR4, options of 4GB/8GB/16GB
- eMMC: eMMC 5.1, options of 32GB/64GB/128GB
- OS: Android / Ubuntu / Buildroot / Debian
- Size: 150 x 100 x 12.67 mm
- Working Temperature: -20 ~ 70°C

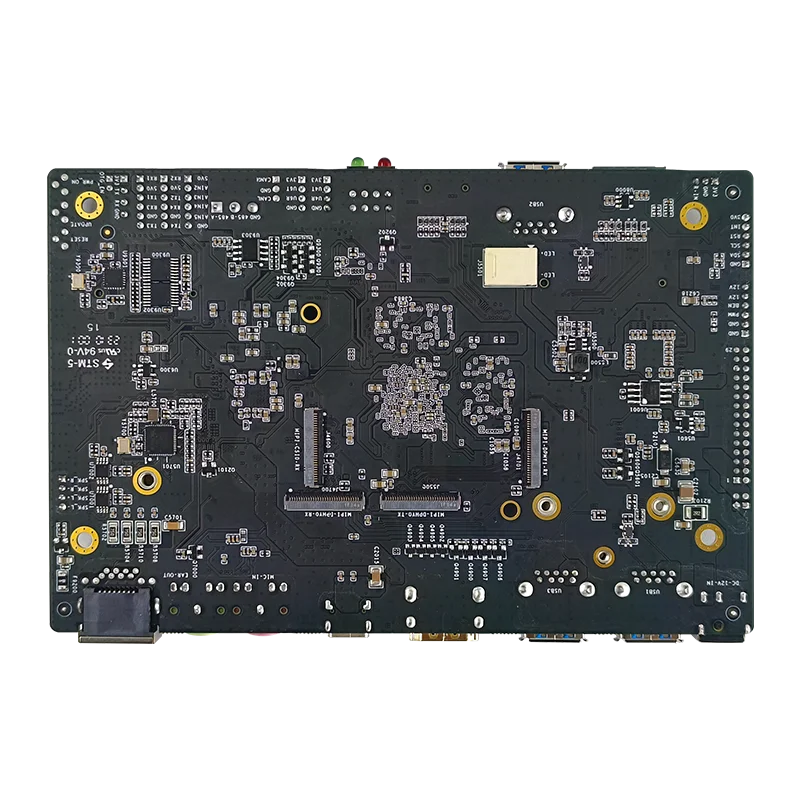

The LBA3588S is designed for industrial applications with a compact footprint. Key features include:
- High Expandability: Supports 3 Type-A USB 3.0 HOST ports, 1 Type-C USB 3.1 OTG port, and an M.2 M-Key slot for additional storage or NPU computing cards.
- Versatile Display Capabilities: Features HDMI 2.0 output and dual-channel LVDS for connecting various display types.
- Open Source and Customizable: The system source code is available for users, allowing for secondary development and tailored solutions to meet specific needs.
Industrial Automation
Monitor and control machinery with real-time data processing.
Media Streaming
Handle high-definition video output for digital signage and entertainment systems.
Artificial Intelligence
Support AI algorithms for machine learning applications.
IoT Devices
Power smart home devices and industrial IoT solutions with efficient data processing.
Customization and Support Options
At Neardi, we understand that every project has unique requirements. Our Octa-Core SBCs can be customized with your branding, including logo printing and personalized packaging. Our dedicated technical support team is here to assist you throughout the development process, ensuring that you have the resources and guidance needed for success.
FAQ
An Octa-Core SBC features eight processing cores, enabling high-performance computing and multitasking capabilities.
Consider factors like processing power, connectivity options, and the specific applications you plan to run.
Yes, our SBCs support various operating systems, including Android, Ubuntu, Buildroot, and Debian.
