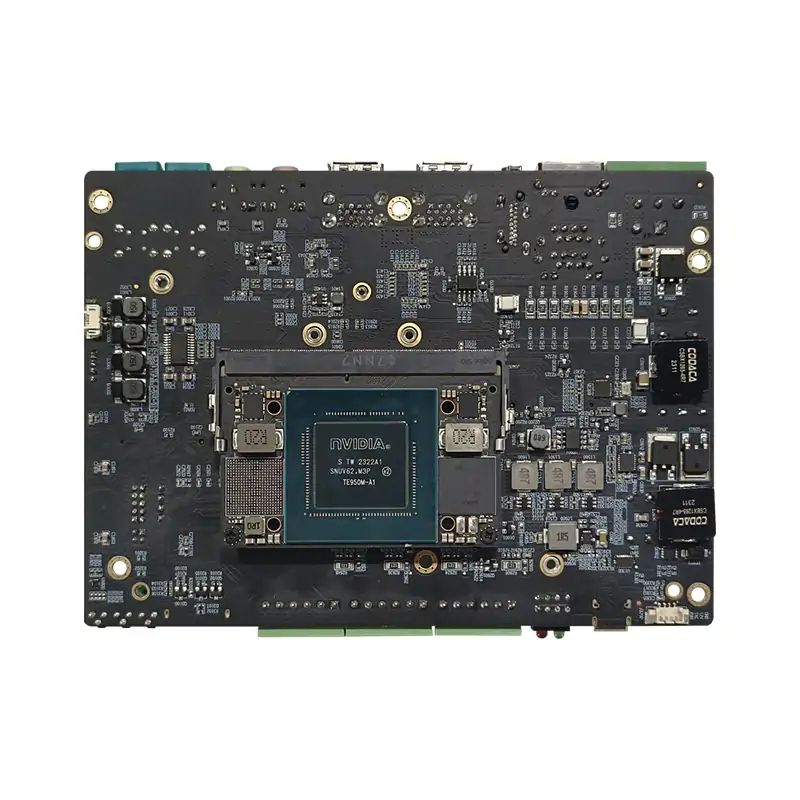

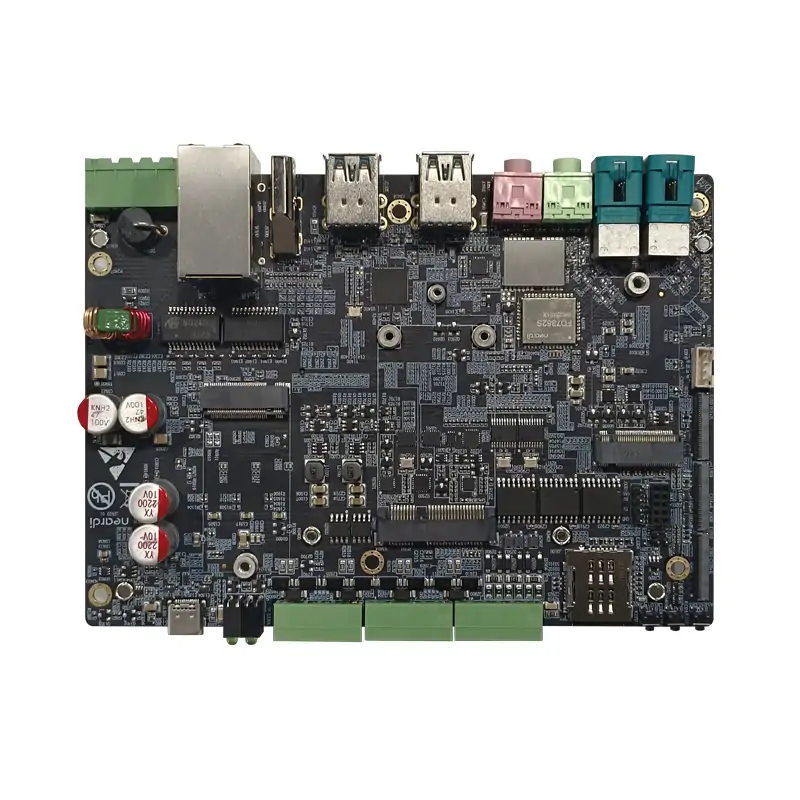

Jetson Orin Nano 8GB Development Board
This Neardi Jetson Orin Nano 8GB Development Board is a cutting-edge embedded computing platform designed for AI-powered applications. Built on NVIDIA’s Ampere architecture, it offers 1024 CUDA cores, 32 Tensor cores, and up to 40 TOPS AI performance. This compact yet powerful board supports Ubuntu, making it an ideal choice for AI inference, robotics, computer vision, and industrial applications.
With rich I/O interfaces, flexible power input (9–36V), and expandable storage options, this development board provides the perfect balance between performance, efficiency, and scalability for embedded AI projects.
Jetson Orin Nano 8GB Development Board Specs & Features
Powerful AI Processing & GPU Performance
✅SOC: Jetson Orin Nano with 6-core Cortex-A78 CPU
✅GPU: NVIDIA Ampere architecture with 1024 CUDA cores & 32 Tensor cores
✅NPU: AI acceleration with up to 40 TOPS performance
✅VPU: Supports 1080p30fps video encoding and 4K60fps video decoding
Memory & Storage
✅LPDDR4 RAM: Available in 8GB and 4GB configurations
✅Storage Expansion:
✅M.2 NGFF (M-Key) PCIe 3.0 x4 for high-speed NVMe SSD
✅M.2 (M-Key) PCIe 2.0 x1 for additional storage options

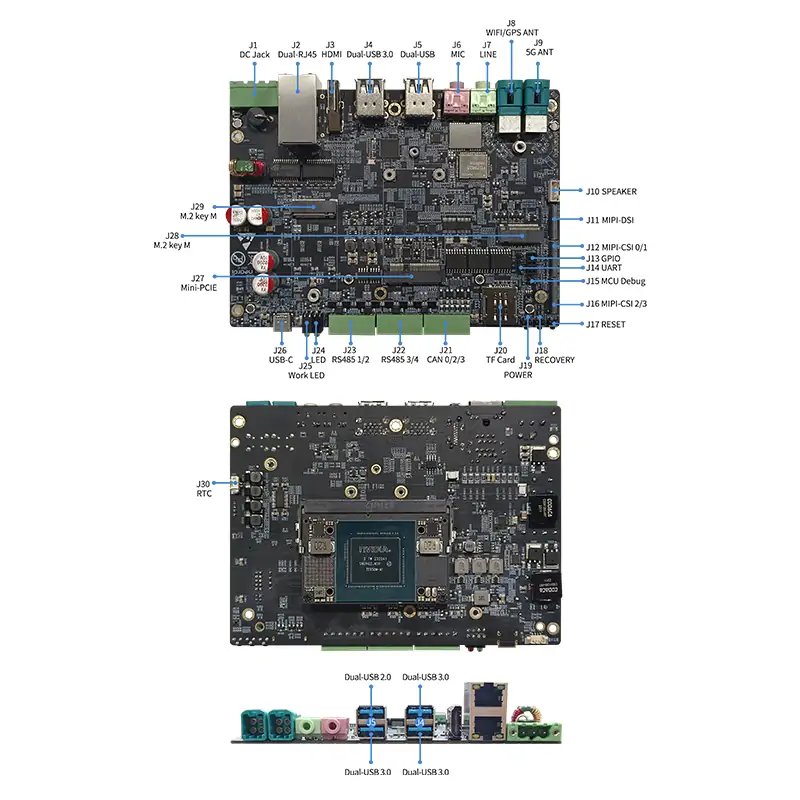

I/O & Connectivity
✅USB Ports: 3 × USB 3.0, 1 × USB 2.0, 1 × Type-C USB 3.1
✅Networking: 2 × Gigabit Ethernet (10/100/1000 Mbps)
✅Wireless Expansion: Mini-PCIe slot for 2G/3G/4G/5G module
✅Camera Interfaces: 2 × MIPI-CSI (4-lane)
Audio & Display
✅Display: 1 × HDMI (supports 4K60fps), 1 × MIPI-DSI
✅Audio: 3.5mm headphone jack, microphone input, dual 2.7W speaker outputs
Industrial-Grade Durability
✅Power Input: 9V-36V wide voltage range
✅Operating Temperature: -10°C to 70°C
✅Dimensions & Weight: 160 × 115 × 41 mm, approximately 224g
