Fanless SBC with RK3588S and 6.0TOPS NPU for High-Performance Computing Tasks
CPU: RK3588S, quad-core A76 + quad-core A55, up to 2.4GHZ
GPU: ARM Mali-G610 MP4, OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU: 6.0TOPS, INT4/INT8/INT16, TensorFlow/Caffe/MXNet/PyTorch, etc.
Interfaces: 2x 1000M Ethernet, 4G/5G, 2x HDMI out, 1x LVDS, 1x type-c, 3x USB3.0, 2x CSI, SD card, I2C, UART, GPIO
Features: multi-screen display, multi-camera input, 1x mini-PCIe computing card expansion
OS: Android/Ubuntu/Buildroot/Debian
Storage combination: 4+32G/8+64G/16+128G
Product size: 160(L)*115(W)*28.25(H)mm
Download: LKD3588S Development Board V1.0

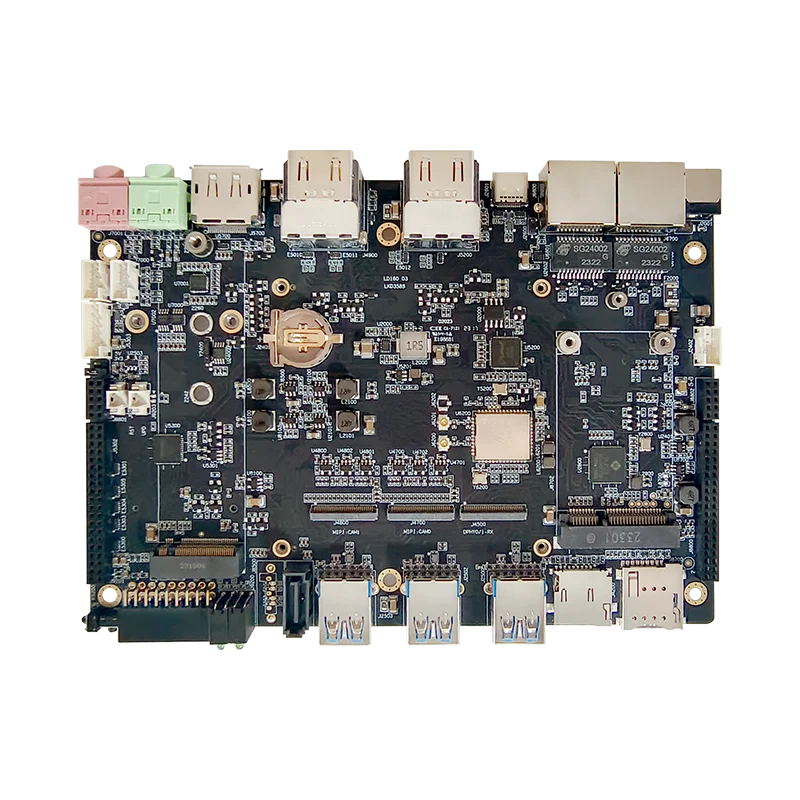

The RK3588S Fanless SBC is a versatile development board built on the Rockchip RK3588 platform. It combines the LCB3588S system-on-module (SoM) and baseboard, connected securely with B2B connectors and fastened with four M2 screws for maximum stability and durability.
This compact, slim board offers a wide range of functionalities and rich interfaces, making it ideal for applications with space constraints.
Key features of the RK3588S Fanless SBC include 3 Type-A USB 3.0 HOST ports, 1 Type-C USB 3.1 OTG port, and 1 4-pin PH2.0 USB 2.0 HOST interface, allowing connection of multiple USB cameras. Additionally, it provides 2 mini-PCIe slots supporting external 4G modules and RK1808-based NPU computing cards. For communication, the board supports dual-band WiFi 6, Bluetooth 5.0, dual Gigabit Ethernet, UART, I2C, RS232, RS485, and CANBUS.
In terms of display, the board supports 3 HDMI outputs, 1 dual-channel LVDS output, 1 DisplayPort (DP) interface, and multi-screen display functionality. It can also handle multiple MIPI-CSI camera inputs and an HDMI 2.0 interface input.
Function | Description |
CPU | RK3588S, quad-core Cortex-A76@2.4GHz + quad-core Cortex-A55@1.8GHz |
GPU | ARM Mali-G610 MC4；OpenGL ES 1.1/2.0/3.1/3.2；Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6 TOPS, supports int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2@8K60FPS Encode: H.264/H.26522@8K30FPS |
DDR | 4GB/8GB/16GB LPDDR4 |
eMMC | eMMC 5.1, 32GB/64GB/128GB(Optional) |
System | Android / Ubuntu / Buildroot / Debian |
Size | 160*115*28.25 mm |
Hardware Interface | |
Power | DC12V – 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 3*Type-A USB3.0 HOST 1* Type-C USB3.1 OTG 1*4Pin PH2.0 USB2.0 HOST |
Display | 2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps 1*Type-A HDMI 1.4 up to 1080P@60fps Duel channel LVDS up to 1080P@60HZ 1*HDMI-IN（4K@60fps)，支持 HDCP 2.3 |
Audio | φ3.5mm earphone Jack with L/R audio out φ3.5mm micphone Jack with Mic in 1*HDMI audio out |
Camera | 2* MIPI CSI (4 Lane) or 4*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane) |
Mini-PCIe | mini PCIe for 2G/3G/4G/5G module RK1808 AI computing card |
SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 2*10/100/1000-Mbps data transfer rates |
RTC | RTC power on and off supported |
Serial port | 3*Uart, 1*I2C |
Keys | 3* keys (power, reset, update) |
Power output | 12V, 5V, 3.3V,1.8V |
Fanless SBC with RK3588S CPU, 6.0TOPS NPU, ARM Mali GPU, and extensive I/O options including 4G/5G, HDMI.
