Extended Temperature Single Board Computer
Rugged Single Board Computer for Harsh Environments
Neardi’s extended temperature single board computers (SBCs) offer the ideal blend of compact design and high performance. Engineered to withstand extreme conditions, these rugged SBCs operate seamlessly in temperatures ranging from -40°C to 105°C, making them perfect for industrial applications where durability is key.
Custom Single Board Computers for Versatile Use
With support for various configurations, Neardi’s custom SBCs are highly adaptable to diverse industry needs. Whether you’re working with Rockchip, NXP, or Nvidia processors, our ARM-based SBCs are built to handle Android, Linux, Ubuntu, and Debian operating systems, giving you the flexibility to meet project requirements with ease.
– Broad temperature range of -40°C to 105°C
– Support for leading processors (Rockchip, NXP, Nvidia)
– Compatible with Android, Linux, Ubuntu, and Debian
– Widely used in industrial touchscreen systems and manufacturing
– Customizable for your specific application needs
Applications in Industrial Automation
Neardi’s extended temperature SBCs are widely applied in fields such as industrial automation, touch screens, control systems, and manufacturing. Our products are designed to thrive in environments that demand long-term reliability and rugged performance.

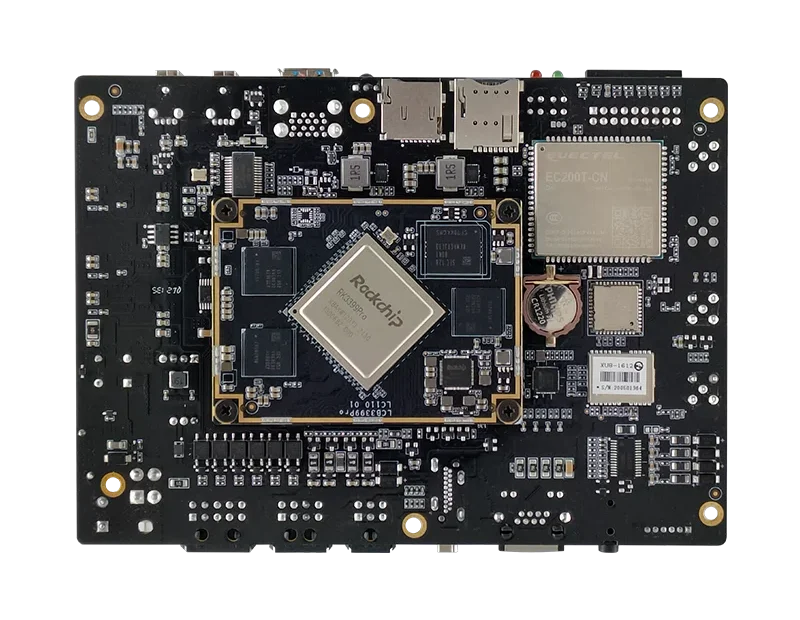

LKD3399Pro SBC
Size: 160*116*38 mm
OS: Android / Ubuntu / Buildroot / Debian
Motherboard Configuration
- CPU: RK3399Pro, dual-core A72 + quad-core A53, frequency up to 1.8GHz
- NPU: computing power 3.0TOPS, support 8bit/16bit operation, support TensorFlow, Caffe model
- GPU: quad-core Mali- T860, support OpenGL ES1.1/2.0/3.0/3.1, OpenCL1.2, DirectX11.1
- Interface: 5x AHD, 1x 1000M Ethernet, WIFI5, BT5.0, 4G, 1x HDMI out, 1x eDP, 1x DSI, 1xUSB3.0, 2x USB2.0, 2x CSI, SD card, I2C, UART, RS232, RS485, GPIO
- Features: wide voltage input, interface isolation, 5-way AHD camera
Technical Support
- 24-hour technical support
- relevance file download
- open-source
The use case of this SBC:
Industrial Panel PC, Industrial Mini PC, Industrial Server PC, Medical Grade Panel PC, Vehicle-Mounted Panel PC, Face recognition terminals, Embedded device terminal, Open Frame Panel PC, Robot, AI, IoTs, Vending Machine, Industrial automation equipment terminal, Digital Signage Board, Detection equipment terminal…
LKD3568J SBC
Size: 160*115*25.7mm
OS: Android / Ubuntu / Buildroot / Debian
Motherboard Configuration
- CPU: RK3568, quad-core A55, up to 2.0GHz
- GPU: ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
- NPU: 1.0TOPS, INT4/INT8/INT16, TensorFlow/Caffe/MXNet/PyTorch, etc.
- Interfaces: 2x 1000M Ethernet, WIFI6, BT5.0, 4G/5G, 2x HDMI out, 1x HDMI in, 1x LVDS, 2x USB3.0, 2x CSI, SD card, I2C, UART, RS232, RS485, CAN, GPIO
- Features: multi-screen display, 3x mini-PCIe, computing power card expansion 9.0T computing power
Technical Support
- 24-hour technical support
- relevance file download
- open-source
The use case of this SBC:
Industrial Panel PC, Industrial Mini PC, Industrial Server PC, Medical Grade Panel PC, Vehicle-Mounted Panel PC, Face recognition terminals, Embedded device terminal, Open Frame Panel PC, Robot, AI, IoTs, Vending Machine, Industrial automation equipment terminal, Digital Signage Board, Detection equipment terminal…

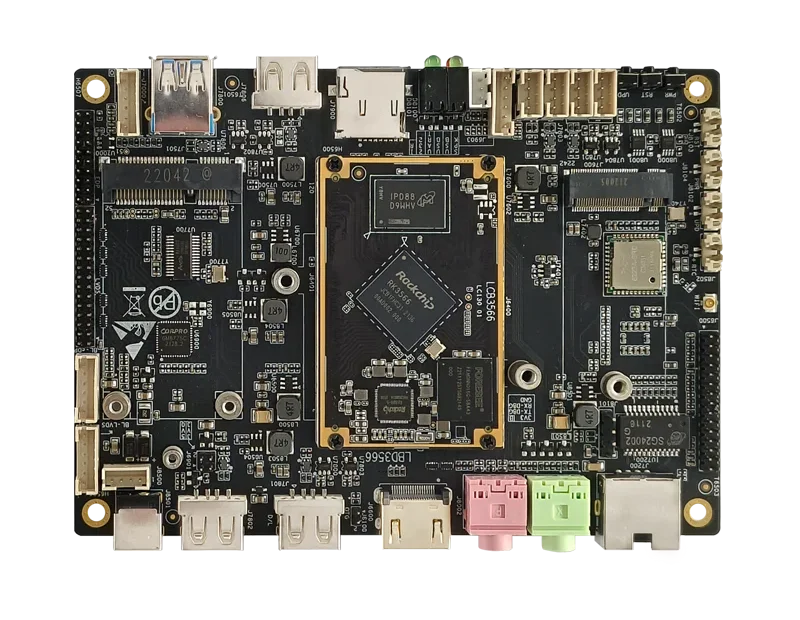

LKD3566 SBC
Size: 140*100*14.25mm
OS: Android / Ubuntu / Buildroot / Debian
Motherboard Configuration
- CPU: RK3566, quad-core A55, up to 1.8GHz
- GPU: ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
- NPU: 1.0TOPS, INT4/INT8/INT16TensorFlow/Caffe/MXNet/PyTorch, etc.
- Interfaces: 1x 1000M Ethernet, WIFI5, BT5.0, 4G, 1x HDMI out, 1x LVDS, 1x eDP, 1x DSI, 5x USB2.0, 2x CSI, SD card, I2C, UART, RS232, GPIO
- Features: multiple display interfaces, multi-channel data communication interfaces
Technical Support
- 24-hour technical support
- relevance file download
- open-source
The use case of this SBC:
Industrial Panel PC, Industrial Mini PC, Industrial Server PC, Medical Grade Panel PC, Vehicle-Mounted Panel PC, Face recognition terminals, Embedded device terminal, Open Frame Panel PC, Robot, AI, IoTs, Vending Machine, Industrial automation equipment terminal, Digital Signage Board, Detection equipment terminal…
LBA3588S SBC
Size: 150*100*12mm
OS: Android / Ubuntu / Buildroot / Debian
Motherboard Configuration
- CPU: RK3588S, quad-core A76 + quad-core A55, up to 2.4GHZ
- GPU: ARM Mali-G610 MP4, OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
- NPU: 6.0TOPS, INT4/INT8/INT16, TensorFlow/Caffe/MXNet/PyTorch, etc.
- Interface: 1x 1000M Ethernet, WIFI5, BT5.0, 4G/5G, 1x HDMI out, 1x LVDS, 1x type-c, 3x USB3.0, 2x CSI, M2 SSD, SD card, I2C, UART, RS232, RS485, CAN, GPIO
- Features: multi-screen display, multi-camera input, 1x mini-PCIe computing card expansion
Technical Support
- 24-hour technical support
- relevance file download
- open-source
The use case of this SBC:
Industrial Panel PC, Industrial Mini PC, Industrial Server PC, Medical Grade Panel PC, Vehicle-Mounted Panel PC, Face recognition terminals, Embedded device terminal, Open Frame Panel PC, Robot, AI, IoTs, Vending Machine, Industrial automation equipment terminal, Digital Signage Board, Detection equipment terminal…
