1080p Embedded Computer for Real-Time Video Processing

1080p embedded computer is a specialized computing device designed to handle high-resolution video processing and real-time applications. Unlike standard embedded systems, these computers are optimized for delivering clear, high-definition visuals, making them ideal for applications like surveillance, industrial automation, and multimedia systems.

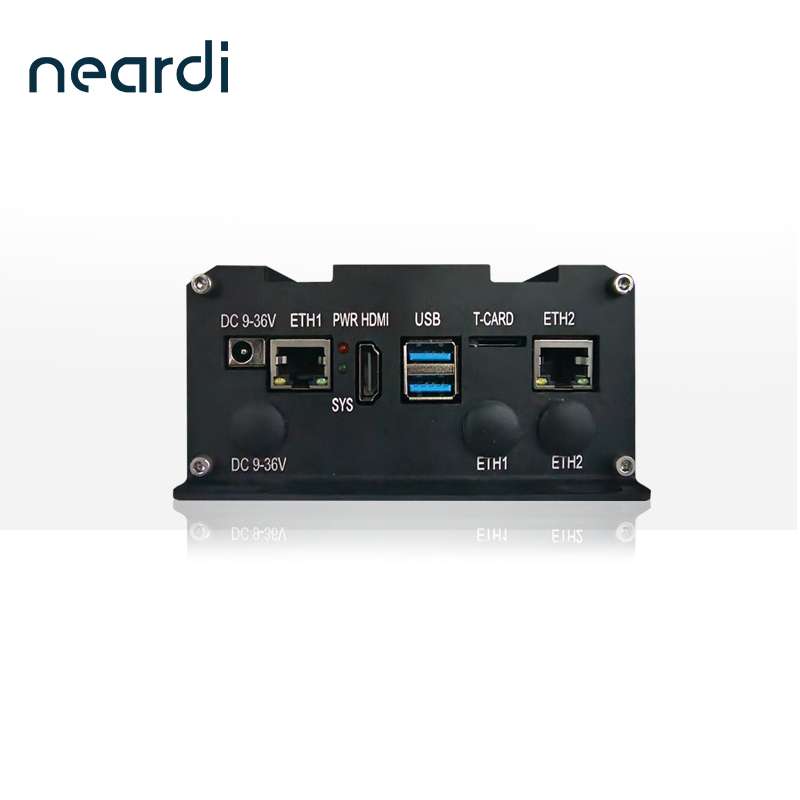

LPB3399PRO 1080p Embedded Computer

SOC	RK3399Pro 28nm, dual-core Cortex-A72, quad-core Cortex-A53
GPU	Mali-T860MP4 GPU, OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
NPU	3TOPS, 8bit/16bit, TensorFlow, Caffe
VPU	Decode: 4K VP9 and 4K 10bits H265/H264, 1080P/60fps (VC-1, MPEG-1/2/4, VP8) Encode: 1080P H.264, VP8

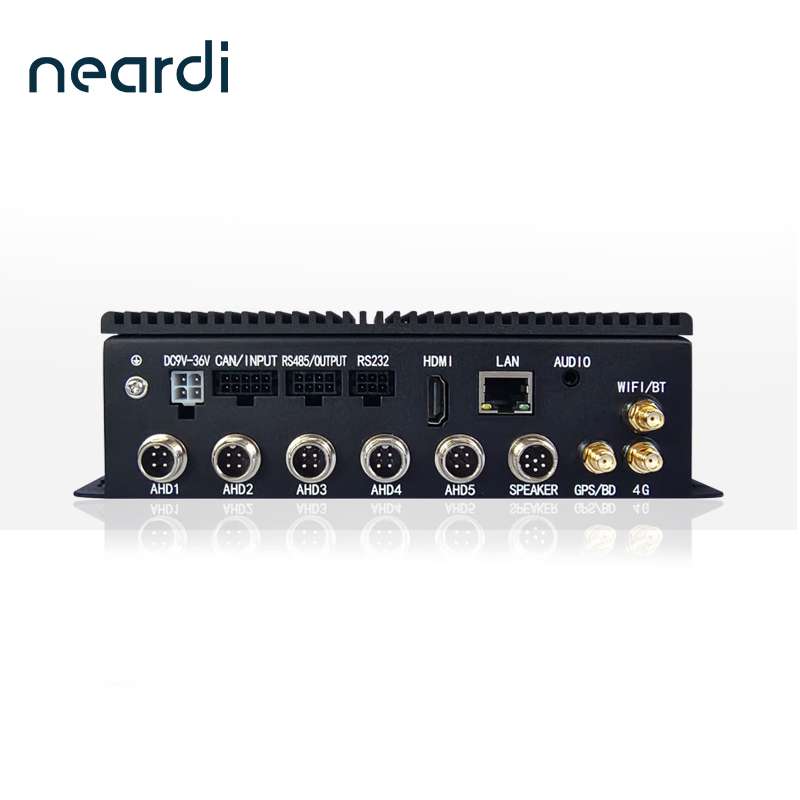

LPA3399PRO 1080p Embedded Computer

Camera Interface	5AHD input up to 19201080@30fps per channel
Connectivity	1Uart, 2RS232, 1*RS485
Input/output	4Relays, 4 digital input, 4x analog input
VPU	Decode: 4K VP9 and 4K 10bits H265/H264, 1080P/60fps (VC-1, MPEG-1/2/4, VP8) Encode: 1080P H.264, VP8

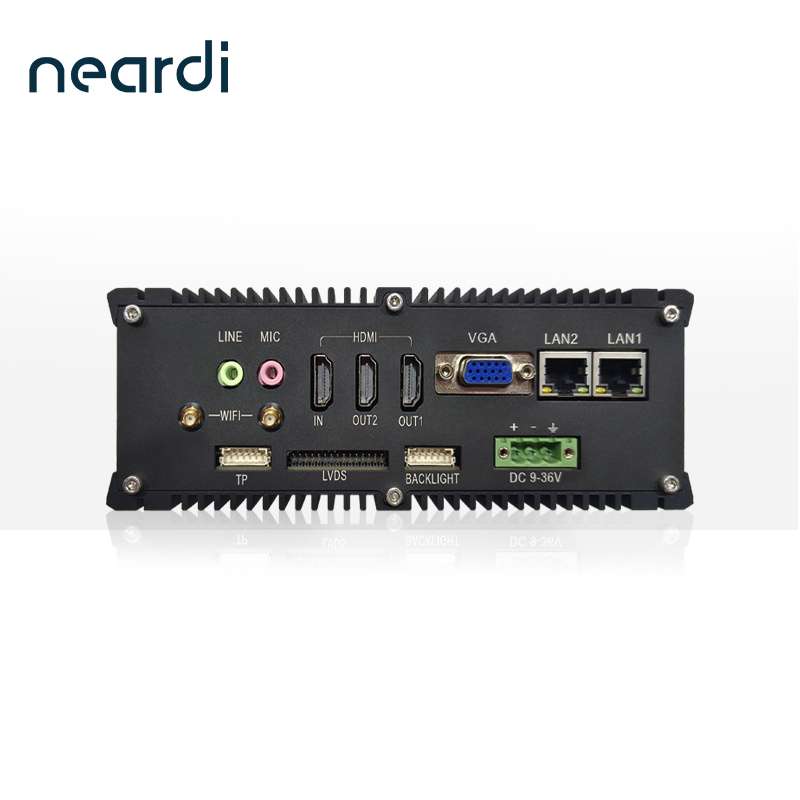

LPB3568 1080p Embedded Computer

CPU	RK3568, 22 nm, quad-core Cortex-A55, up to 2.0GHZ
GPU	ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D Graphics Engine
NPU	10 TOPS, INT8/INT16/FP16/BFP16 MAC hybrid operation supported
VPU	4K VP9 and 4K H265 up to 60fps video decoding 1080P up to 100fps H265/H264 video encoding 8M ISP with HDR

How Do 1080p Embedded Computers Differ from 4K Embedded Computers?

While both 1080p and 4K embedded computers are used for high-resolution video processing, there are significant differences between the two.

Applications

>>1080p Embedded Computers: Suitable for surveillance, industrial automation, medical imaging, and in-car entertainment systems.
>>4K Embedded Computers: Ideal for digital signage, high-end video conferencing, and professional video editing.

Hardware Requirements

>>1080p Embedded Computers: Typically require less powerful hardware compared to 4K systems, making them more cost-effective and energy-efficient.
>>4K Embedded Computers: Require more robust hardware, including higher-end CPUs and GPUs, to handle the increased resolution and data processing.

Resolution and Clarity

>>1080p Embedded Computers: These systems support Full HD resolution (1920x1080 pixels), providing clear and detailed images suitable for most applications.
>>4K Embedded Computers: These systems support Ultra HD resolution (3840x2160 pixels), offering even higher clarity and detail, ideal for applications requiring the highest level of visual fidelity.

Hardware Requirements for 1080p Embedded Computers

To handle 1080p video, an embedded computer needs specific hardware components:

High-Performance CPU

A powerful processor is essential for managing high-definition video processing. For example, the LKD3588 and LKD3588S are powered by the Rockchip RK3588 and RK3588S CPUs, featuring a combination of quad-core A76 and quad-core A55 processors with a maximum frequency of 2.4GHz.

Dedicated GPU

A dedicated GPU, such as the ARM Mali-G610 MP4, is essential for video encoding and decoding. This GPU supports advanced graphics with OpenGL ES3.2, OpenCL 2.2, and Vulkan 1.1, delivering 450 GFLOPS of performance.

High-Speed Storage

Fast storage solutions like SSDs are crucial for quick data access and storage, ensuring that the system can handle high-resolution video streams seamlessly.

Sufficient RAM

At least 4GB of RAM is necessary for smooth performance, although 8GB or more is recommended to handle multiple tasks efficiently.

Can 1080p Embedded Computers Handle Real-Time Video Processing?

Absolutely! 1080p embedded computers are designed to handle real-time video processing efficiently.

Real-Time Decoding and Encoding

These systems can decode and encode high-definition video streams seamlessly, making them perfect for applications that require instant video analysis and display, such as surveillance and live broadcasting.

Low Latency

With high-performance CPUs and GPUs, 1080p embedded computers can process video with minimal latency, ensuring real-time responsiveness.

Robust Connectivity

Multiple I/O ports, including USB, HDMI, and Ethernet, ensure that these systems can connect to various peripherals and networks, facilitating smooth and uninterrupted video processing.

How to optimizing Performance for 1080p Video on Embedded Systems?

To get the best performance from a 1080p embedded computer, consider the following optimization strategies:

Efficient Cooling Solutions

Overheating can significantly impact performance. Ensuring that the system has adequate cooling, such as the fanless design used in Neardi’s embedded computers, helps maintain optimal performance.

Regular Software Updates

Keeping the system’s software and drivers up to date can enhance performance and introduce new features that improve video processing capabilities.

Resource Management

Managing system resources effectively, such as prioritizing critical tasks and optimizing power usage, can ensure that the 1080p embedded computer operates smoothly and efficiently.
